OMERTA DEFENCE

UAV & ROBOTICS CATALOG

Unmanned Systems Division

Innovation Takes Flight

◉ Category A

FPV Drones

High-performance first-person-view platforms for manual flight, freestyle, long-range operations, and mission-critical applications.

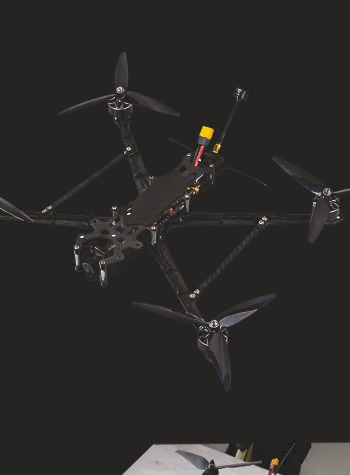

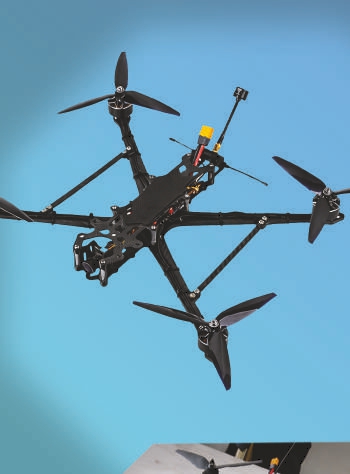

◆ Model R-FPV

R-FPV

Multi-purpose FPV UAV engineered for high-performance manual and assisted flight. Supports freestyle, long-range, cinematic, and mission-oriented FPV operations. Modular architecture enables flexible propulsion, power systems, and payload integration.

◆ Frame Size 7-15 inch

◆ Configuration Quadcopter

◆ Battery Type LiPo / Li-ion

◆ Range 20 km

◆ Max Flight Time 10-40 min

◆ Max Payload 2-8 kg

◆ FPV System Analog / Digital HD

◆ Communication Link Wireless / Fiber-optic

▷ Request Quote

◆ Model R-PROTECTED

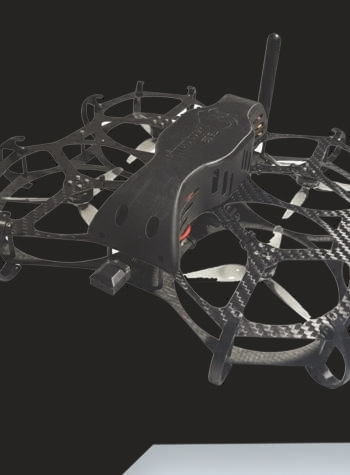

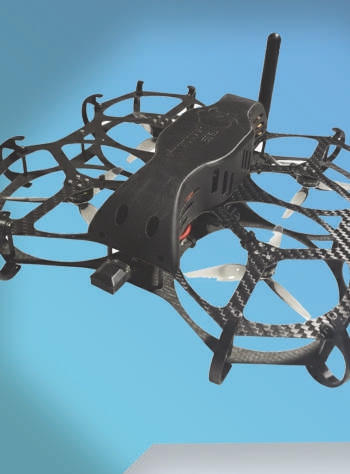

R-Protected Drone

Rigid frame drone designed for R&D, educational, and training purposes. Features an in-house developed Ground Control Station with off-edge AI processing delivering up to 67 TOPS of computational power for advanced autonomous operations.

◆ Range 5 km

◆ Max Flight Time 25 min

◆ Communication Link Dual-Band Encrypted

◆ Max Payload 1.5 kg

◆ Transmission Range 20 km

◆ Weight 1.63 kg

◆ Image Sensor Sony IMX415

◆ Video Resolution 3840x2160 @20fps

▷ Request Quote

◉ Category B

Multirotor UAVs

Heavy-lift, high-endurance multirotor platforms built for the most demanding operational environments.

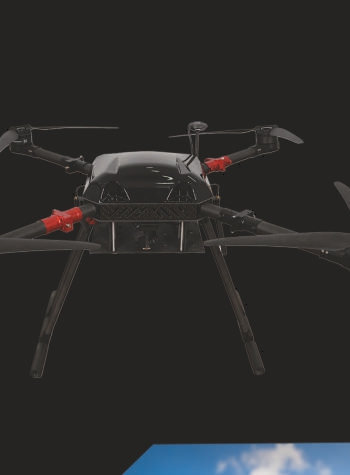

◆ Model R-OQAB

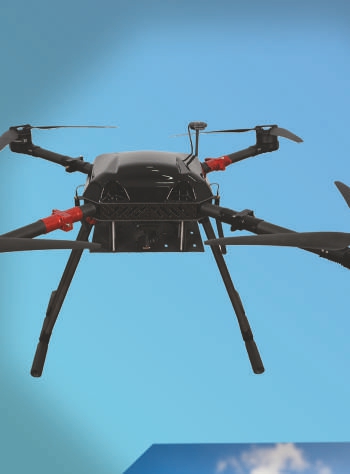

R-OQAB

Foldable high-performance multipurpose quadcopter delivering long endurance and heavy-lift capability in the most challenging conditions. Exceptional wind resistance and stable hovering make it ideal for critical operations.

◆ Max Altitude 1000 m

◆ Max Speed 60 km/h

◆ Max Hover Time 50 min

◆ Weight 5.5 kg

◆ Hover Time with Payload 22 min

◆ Max Distance with Payload 20 km

◆ Wind Resistance Level 7

◆ Configuration Foldable Quad

▷ Request Quote

◉ Category C

Stabilization Platforms

High-precision stabilization systems for aerial payloads including cameras, weapons, and specialized equipment.

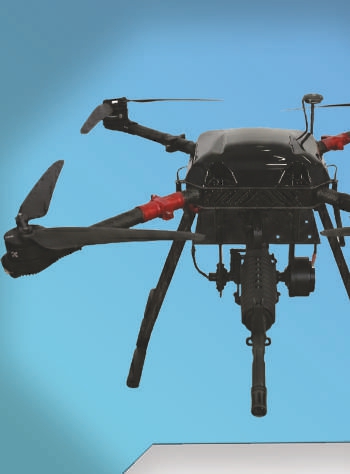

◆ Model R-AEROSNIPER

R-AeroSniper

High-precision stabilization platform engineered for drone-mounted operations. Carries payloads up to 5 kg including machine guns, water pumps, and cameras with precise aiming during flight. Designed for military, reconnaissance, and fire-extinguishing applications.

◆ Weight 2.5 kg

◆ Max Payload 5 kg

◆ Configuration Modular

◆ Dimensions 22x25x21 cm

▷ Request Quote

◉ Category D

Fixed-Wing UAVs

Long-range, high-endurance fixed-wing platforms for reconnaissance, strike missions, and beyond-line-of-sight operations.

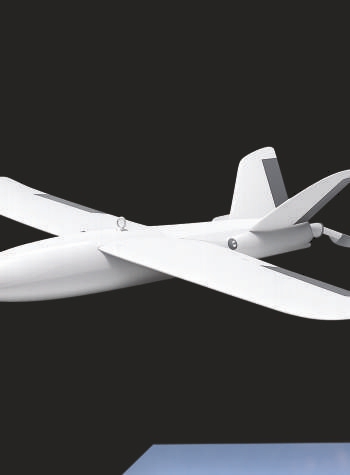

◆ Model R-SAHAB

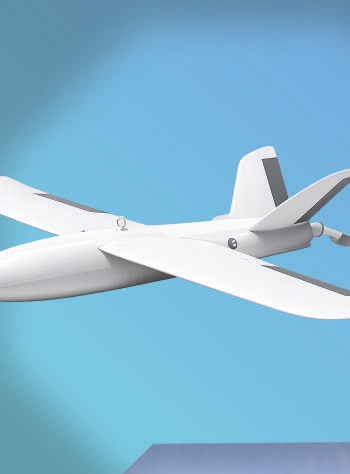

R-SAHAB

Lightweight fixed-wing UAV leveraging advanced 3D-printed technology for rapid production and deployment. Offers efficient long-range, high-endurance capability with flexible payload integration. Optimized for one-way attack (kamikaze) missions.

◆ Range 40-50 km

◆ Wingspan 1.8 m

◆ Max Payload 1.5 kg

◆ Flight Endurance 60 min

◆ Control Range 30 km

◆ Engine Type Electric Motor

▷ Request Quote

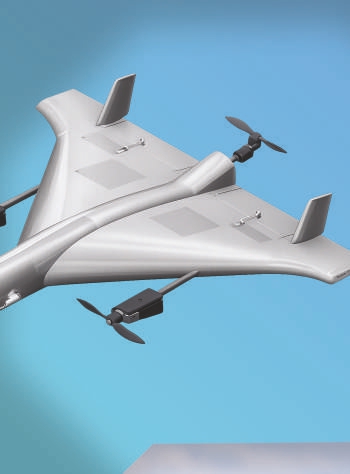

◆ Model R-TAREQ

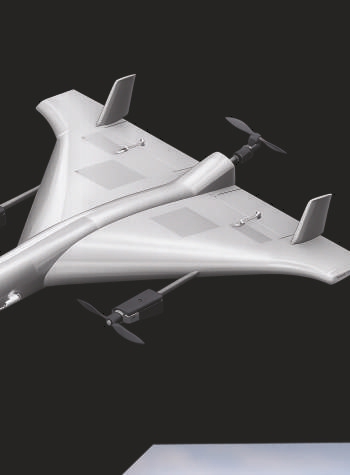

R-TAREQ

Fixed-wing VTOL UAV that combines the efficiency of winged flight with the versatility of vertical takeoff and landing. Engineered for one-way attack missions against hardened structures. Non-VTOL variant available with extended 50 km range.

◆ Range 30-40 km

◆ Wingspan 1 m

◆ Flight Endurance 25 min

◆ Control Range 40 km

◆ Max Altitude 1000 m

◆ Max Speed 40 m/s

◆ Max Payload 1.5 kg

◆ Launching VTOL / Conventional

▷ Request Quote

◉ Category E

VTOL Systems

Vertical takeoff and landing flying wings combining rotorcraft flexibility with fixed-wing efficiency for extended mission profiles.

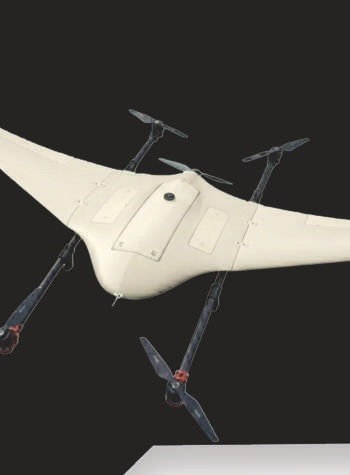

◆ Model R-HURR

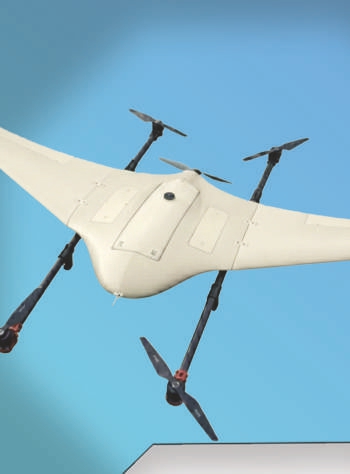

R-HURR

Multipurpose flying wing VTOL platform equipped for electro-optical payloads, fire detection, wildlife protection, and wide-area surveillance. Exceptional range and endurance with vertical launch capability eliminates the need for runway infrastructure.

◆ Range 100 km

◆ Max Flight Time 150 min

◆ Control Range 30 km

◆ Max Payload 3 kg

◆ Max Altitude 2000 m

◆ Wingspan 2.4 m

◆ Launching VTOL

◆ Wind Resistance Level 7

▷ Request Quote

◉ Category F

Reconnaissance

Extended-range unmanned aerial systems for high-endurance surveillance, mapping, and strategic reconnaissance over vast operational areas.

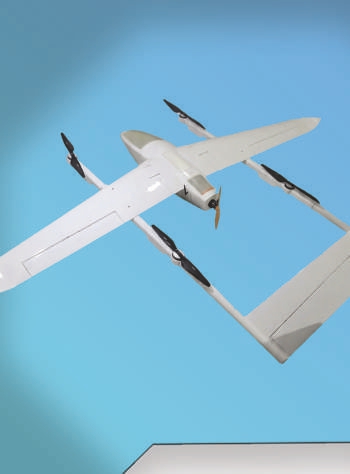

◆ Model R-AL-KASER

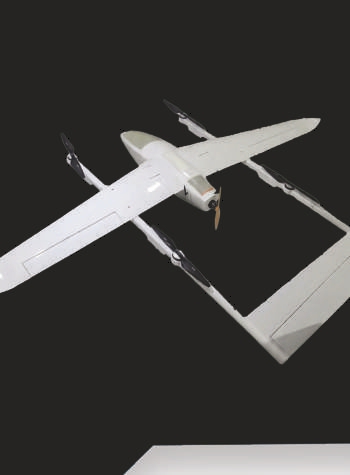

R-AL-KASER

Long-range UAV engineered for high-endurance missions including surveillance, mapping, and remote-area operations. Dual-engine configuration supports both civilian and security applications with exceptional operational flexibility.

◆ Range 700 km

◆ Wingspan 4 m

◆ Max Payload 20 kg

◆ Flight Endurance 7 hours

◆ Control Range 100 km

◆ Max Altitude 3000 m

◆ Engine Type Electric / Gasoline

◆ Primary Role Civilian / Security

▷ Request Quote

◆ Model R-SHIHAB

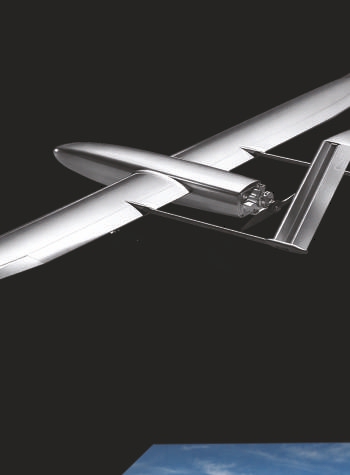

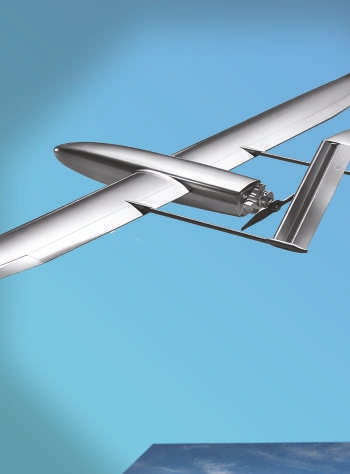

R-SHIHAB

Multi-role long-range UAV built for long-endurance reconnaissance and surveillance. Features a large wingspan with gasoline propulsion and modular payload and powertrain configurations. Optional kamikaze mission profile available.

◆ Range 800-1000 km

◆ Wingspan 6.5 m

◆ Max Payload 30 kg

◆ Flight Endurance 12h (18h mod)

◆ Control Range 100 km

◆ Max Altitude 5000 m

◆ Engine Type Gasoline

◆ Mission Recon / Kamikaze

▷ Request Quote

◉ Category G

Ground Control

Portable ground control stations with integrated AI computing for real-time UAV command, telemetry, and video streaming.

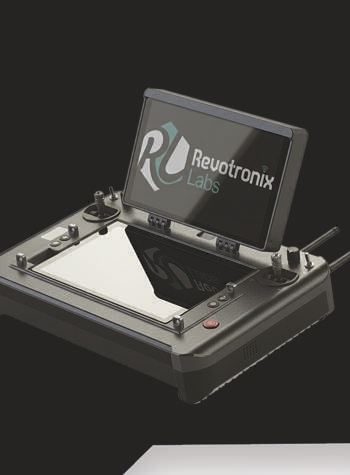

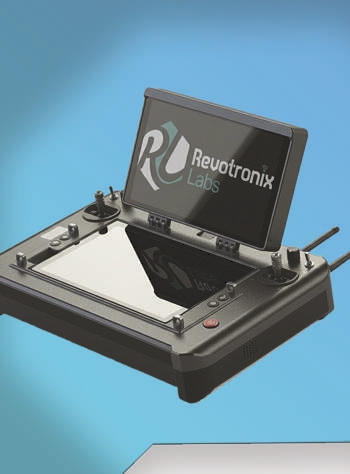

◆ Model R-GCS

R-GCS

Portable wireless Ground Control Station enabling real-time communication with UAVs and drones. Features real-time telemetry, video streaming, and command transmission with integrated AI computing and off-edge processing capabilities.

◆ Communication Link Dual-Band Encrypted

◆ Range 20 km LOS

◆ AI Power 67 TOPS

◆ Runtime 2-3 hours

◆ MCU STM32F765 + ATMEGA32U4

◆ CPU BCM2711 + N5105

◆ AI Core 6-core ARM Cortex-A78AE

◆ Operating Systems Windows / Linux

▷ Request Quote

◉ Category H

Ground Vehicles

Rugged unmanned ground vehicles for reconnaissance, surveillance, payload transport, and autonomous operations in hostile environments.

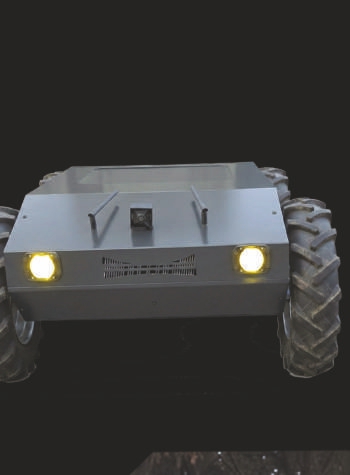

◆ Model R-UGV

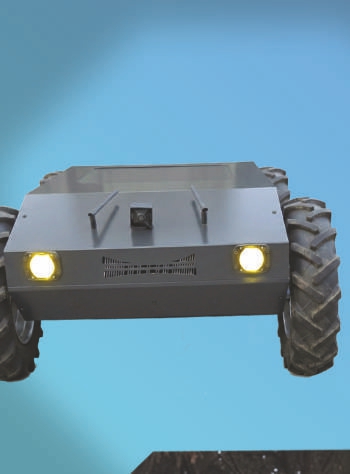

R-UGV

Rugged Unmanned Ground Vehicle engineered for reconnaissance, surveillance, and heavy payload transport. Features long-range operation, high payload capacity, and real-time video for security and industrial applications.

◆ Flight Endurance 75 km

◆ Max Payload 100 kg

◆ Max Speed 19 km/h

◆ Comms Range 15 km

◆ Runtime 3-4 hours

◆ Dimensions 120x85x45 cm

◆ Camera Resolution 1080p

◆ Weight 100 kg

▷ Request Quote

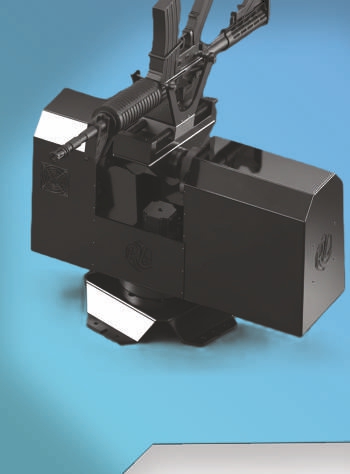

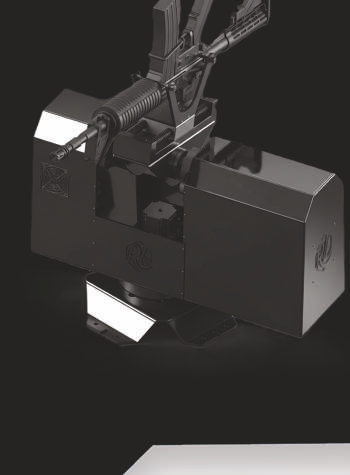

◆ Model R-GROUND UNIT X2

R-Ground Unit X2

Two-axis weapon stabilization system designed for REVO-UGV integration or standalone deployment. Enables automated control of lightweight machine guns with precise pan/tilt motion and wireless remote operation. Suited for firefighting, police, surveillance, and reconnaissance applications.

◆ Dimensions 60x30x53 cm

◆ Weight 30 kg

◆ Axes of Motion 2-axis Pan/Tilt

◆ Max Payload 20 kg

▷ Request Quote

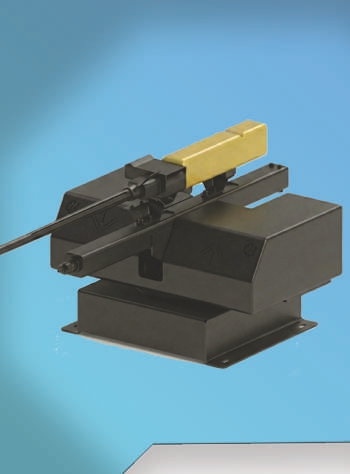

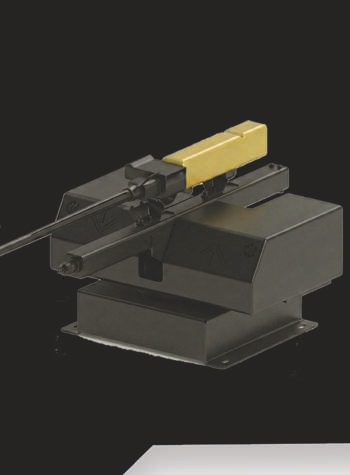

◆ Model R-GROUND UNIT X

R-Ground Unit X

Heavy-duty two-axis weapon stabilization platform built for the highest payload demands. Shares the same operational purpose as the X2 variant but supports significantly heavier armaments and equipment for maximum tactical flexibility.

◆ Dimensions 81x57x35 cm

◆ Weight 30 kg

◆ Axes of Motion 2-axis Pan/Tilt

◆ Max Payload 50 kg

▷ Request Quote

◉ Comparison

UAV Comparison

Side-by-side performance overview of our fixed-wing and VTOL aerial platforms.

Model	Type	Range	Endurance	Payload	Max Altitude
R-SAHAB	Fixed-Wing	40-50 km	60 min	1.5 kg	--
R-TAREQ	VTOL Fixed-Wing	30-40 km	25 min	1.5 kg	1,000 m
R-HURR	Flying Wing VTOL	100 km	150 min	3 kg	2,000 m
R-AL-KASER	Long-Range UAV	700 km	7 hours	20 kg	3,000 m
R-SHIHAB	Multi-Role UAV	800-1000 km	12-18 hours	30 kg	5,000 m
